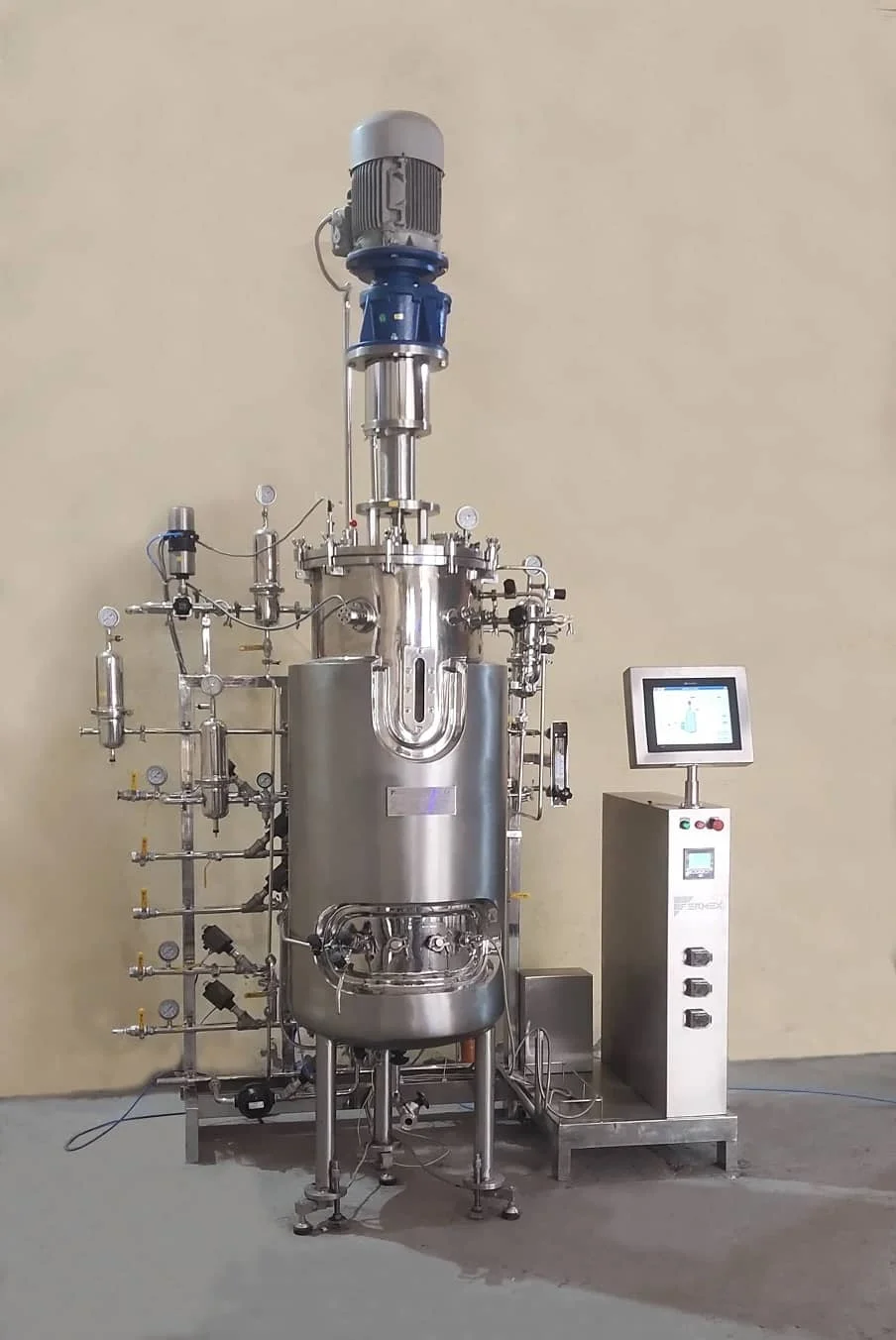

InSitu Sterilizable Fermenter Bioreactor Pilot Scale

Model No : Fermex BioFMX

Capacity : 50L to 750L

Industry : Pharmaceutical & Biotech Industry, Agriculture Industry, University, Research Institutes

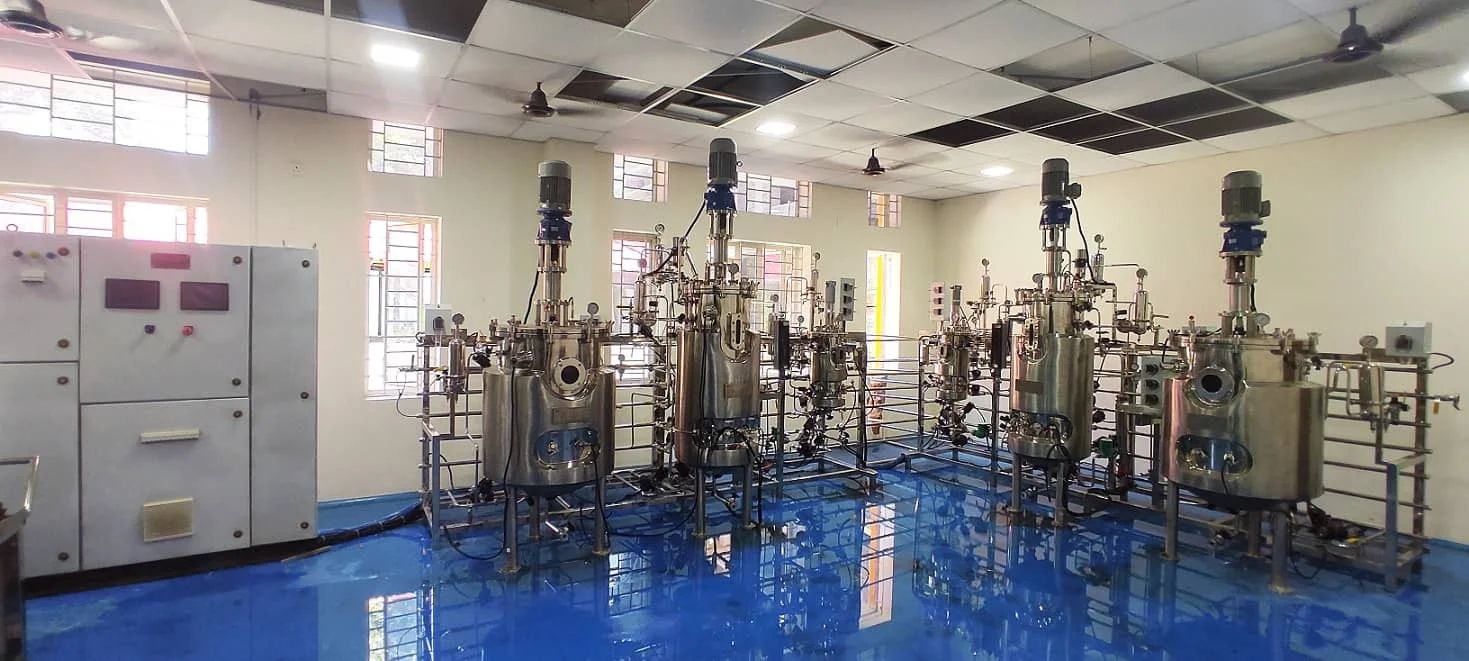

BioFMX series is a range of In-situ fermenters for pilot scale. They are available in standalone, twin, and parallel models.  Fermex In-situ fermenters and bioreactors are made up of high-quality SS316L material which is non-corrosive and non-toxic and provides the best sterile environment for microbial culture growth. BioFMX range starts from 50L to 750L and is available in various Automation modes (Basic, Semi, and Fully Automatic). Fermex being the best quality Bioreactors manufacturer in India, thus our Bioreactors are an asset for any research labs, universities, biotechnology, and biopharma industries.

Technical Specifications:

Type: Sterilization in Place (SIP) and Cleaning in Place (CIP)

Design Code: ASME BPE-2019

Temperature: 0 to 150 °C

pH: 2 to 14

MOC: SS 316L

Automation Grade: Manual, Semi Automatic & Fully Automatic

Surface Finish: Inner surface 420 grit mirror-finished Ra 0.25 to 0.5mm and External 120 to 180 grit matt finish

Controls:

• Automatic Temperature Control
• Aeration Control through rotameter/MFC
• Automatic Nutrient Feeding Control
• Automatic Exhaust Gas Pressure Monitoring & Control
• Automatic Agitation Control
• Automatic Back Pressure Monitoring
• Automatic DO Control (Cascade Control)
• Automatic OD/Turbidity Measurement
• Automatic pH Control
• Automatic Redox Monitoring & Control
• Automatic Vessel Sterilization Control
• Batch Recipe System
• Control Panel – Independent / Combined
• Mobile Application
• SMS Alert Facility
• Supervisory Control And Data Acquisition (SCADA)
