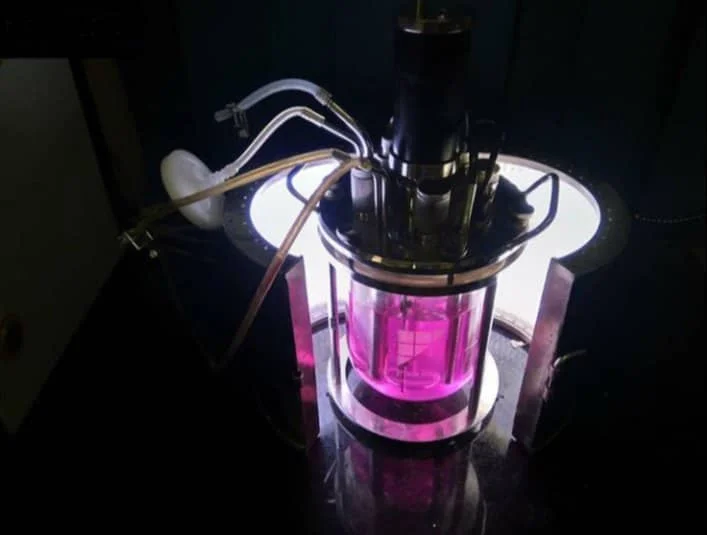

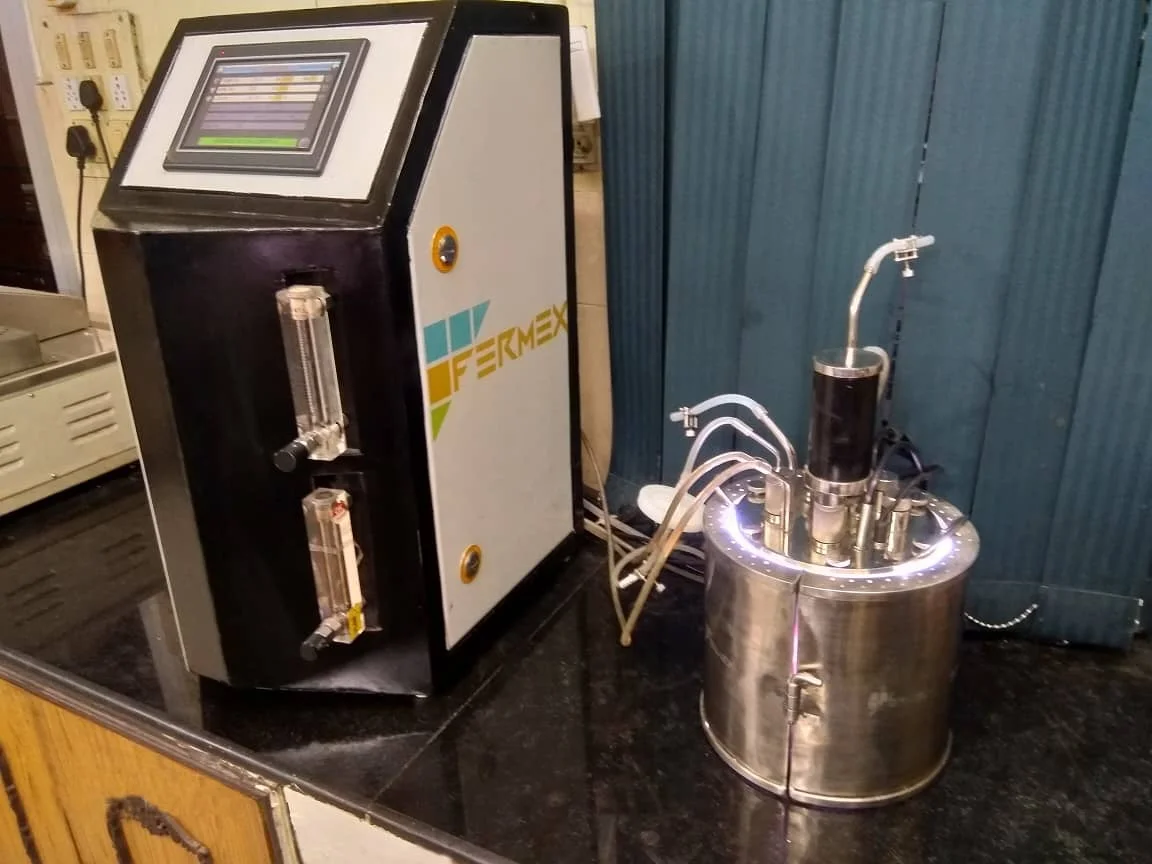

Photobioreactor Lab Scale

Model No : Fermex BioFoton

Capacity : 2L to 40L

Industry : Pharmaceutical & Biotech Industry, Research Institutes

Our BioFoton range provides optimum control over critical parameters like the color spectrum, intensity of light, temperature, circulation, pH, DO, etc. for better experimentation and research objectives for the production of photosynthetic microorganism production, nutraceuticals, proteins, biofuels and biomass. Fermex lab scale photo-bioreactors are designed and manufactured by professionally trained and skilled engineers under a strict code of “Good Manufacturing Practices”  and we follow the principles of bioprocess technology and the latest guidelines of ASME BPE-2016. Our BioFoton series is made up of supreme quality materials like Borosilicate glass and stainless steel grade 316L. Our lab scale BioFoton series is available from 2L to 40L range along with customized controls.

Technical Specifications:

Type: Autoclavable

Design Code: ASME BPE-2019

Temperature: 0 to 140 °C

pH: 2 to 14

MOC: Borosilicate Glass & SS316L

Automation Grade: Manual, Semi-Automatic & Fully Automatic

Surface Finish: Inner surface 420 grit mirror-polished Ra≤0.5 μm

Features:

• Better control of CO2/O2 transfer.
• Automatic Illumination control system with variable intensity and color spectrum.
• Automated controls of process parameters like aeration, temperature, foaming, pH, DO, pressure regulation, exhaust gas monitoring, etc.
• SCADA system with data logging for batch process control is also provided.
• Time-based Illumination system.
• Customized Photo Bioreactors are available as per customer requirements.
• BioFoton series is easy to operate and requires minimal maintenance.

Controls:

• Automatic Temperature Control
• Automatic pH Control
• Automatic Foaming Control
• Aeration Control through rotameter/MFC
• Automatic Nutrient Feeding Control
• Automatic Redox Monitoring & Control
• Automatic Exhaust Gas Pressure Monitoring & Control
• Automatic OD/Turbidity Measurement
• Automatic Agitation Control
• Batch Recipe System
• SMS Alert Facility
• Mobile Application
• Control Panel – Independent / Combined
• Supervisory Control And Data Acquisition (SCADA)
• Illumination (Light) System
